Vibration meter LUTRON VB-8230SD

Product detailed description

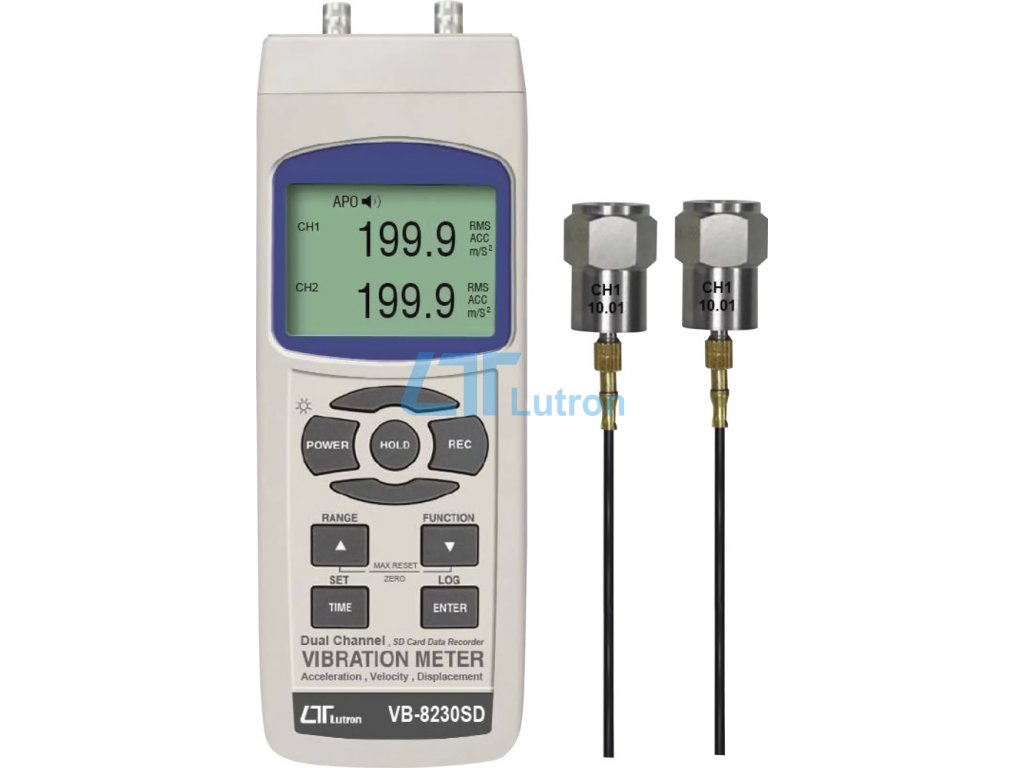

LUTRON VB-8230SD is dual channel vibration meter with extreme vibration sensor and magnetic base.

• Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954
• Velocity measuring range 0.5 - 199 mm/s, 7.87 inch/sec.
• Acceleration measuring range 200 m/s2 , 656 ft/s2
• RMS and Peak measurement
• Metric and Imperial display unit
• Super large LCD display
• Data hold to freeze the reading
• Memory function to record maximum and minimum reading with recall
• High performance microcomputer circuit
• Low-battery indicator
• Auto power-off (to save battery)
• Manual datalogger available
• Separable vibration probe, easy operating
• RS 232 computer interface

Software

• Optionable data acquisition software for data record and datalogger is available for purchase. For more information, please contact us through the contact box.

Documents:

• Techsheet
