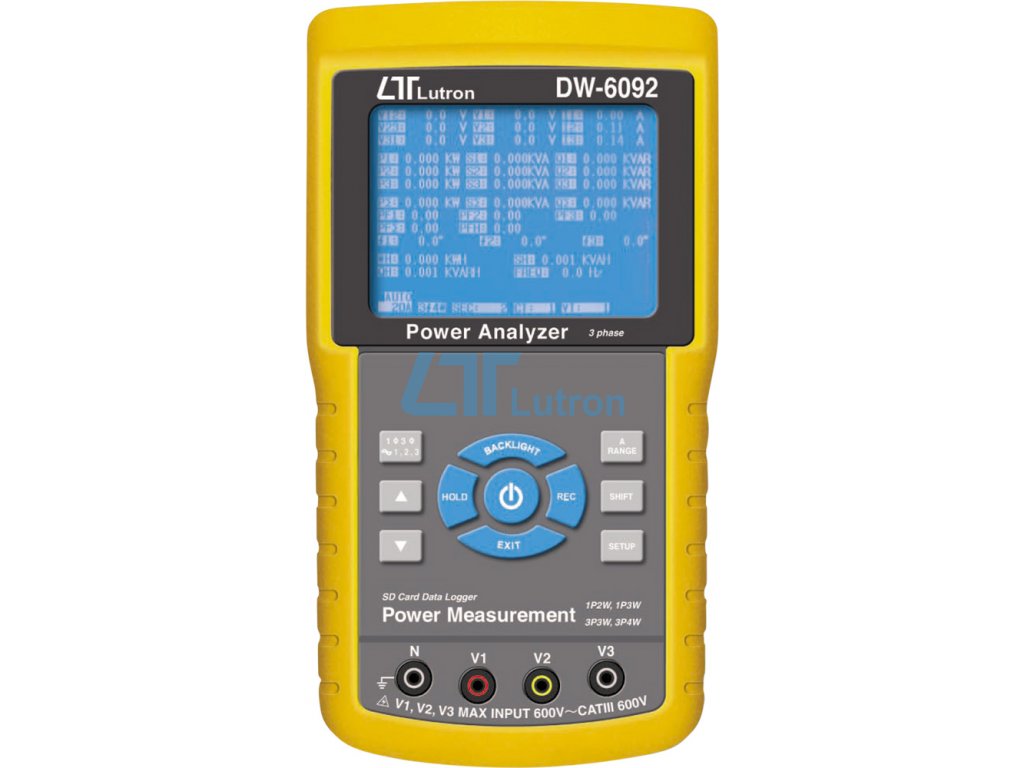

Wattmeter analyzer LUTRON DW-6092

Product detailed description

Features:

• Analysis for 3 phrase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
• TrueRMS value for voltage and current.
• Built-in clock and calendar
• Real time data record with SD memory card
• Safety standard: IEC 1010 / CAT III 600V
• Weight: Meter 1049g and Clamp 522g
• Clamp jaw: 50 mm
• Computer data output - USB Cable/USB-01 and RS232 cable/UPCB-02

Measurement specifications:

• Voltage measurement range: 10 to 600 ACV
• Current measurement range: 0.2A to 1200 ACA
• Optionable sampling time from 2 to 7200 second
• True Power (KW / MW / GW) measurement.
• Apparent Power (KVA / MVA / GVA) measurement.
• Reactive Power (KVAR / MVAR/ GVAR) measurement.
• Watt-Hour (WH / SH / QH / PFH).

Package contains:

• DW-6092 device, 4 pcs Test leads, 4 pcs Alligator clips, 3 pcs Clamp probe, AC to DC 9V adapter, 2 GB SD memory card and Carrying bag

More technical and measurement specifications are listed in the DataSheet below.
