    Anemometer LUTRON AM-4307SD

    Not rated
    AM 4307SD
    €185 €223,85 incl. VAT

    The LUTRON AM-4307SD is an anemometer with external probe, that can measure gas flow rate in range...

    Detailed information

    Related products

    adapter LUTRON AP-9VA
    adapter LUTRON AP-9VA
    €14,52 incl. VAT
    €12

    DC 9V Power Adapter AP-9VA suitable for many LUTRON devices.Input voltage: 100 to 240 ACV, 50/60...

    0359LUTADAPTACDCX003TW
    cable USB-01
    cable USB-01
    €54,45 incl. VAT
    €45

    The LUTRON USB-01 cable connect the meter to get the USB interface.The computer interface cable. one...

    0359LUTUSB01XXXXX003TW
    temperature probe TP-01
    temperature probe TP-01
    €9,72 incl. VAT
    €8,03

    Lutron TP-01 is a type K temperature probe. Max. short-tern operating temperature: 250°C...

    0359LUTTP01XXXXXX003TW
    temperature probe TP-02A
    temperature probe TP-02A
    €45,36 incl. VAT
    €37,49

    Lutron TP-02A is type K temperature probe Temperature measuring range: -50°C to 900°C or...

    0359LUTTP02XXXXXX003TW
    temperature probe TP-03
    temperature probe TP-03
    €69 incl. VAT
    €57,02

    Lutron TP-03 is a type K temperature probe Temperature measure range: -40°C to 1050°C or...

    0359LUTTP03XXXXXX003TW
    temperature probe TP-04
    temperature probe TP-04
    €66,68 incl. VAT
    €55,11
    Detail

    Lutron TP-04 is a type K temperature probe. Temperature measure range: -50°C to 400°C or...

    0359LUTTP04XXXXXX003TW
    E801
    Data acquisition software LUTRON U801 WIN- E816
    €50,82 incl. VAT
    €42

    The SW-U816 software for current (real) display of measured values for...

    0359LUTSWE816XXX0003TW
    sw E802
    software LUTRON SW-E802
    €55,66 incl. VAT
    €46

    Excel data acquisition software SW-E802 is used to save the displayed data in real time directly to the Microsoft Office Excel application...

    0359LUTSWE802XXX0003TW
    Show all related products Previous product Next product

    Product detailed description

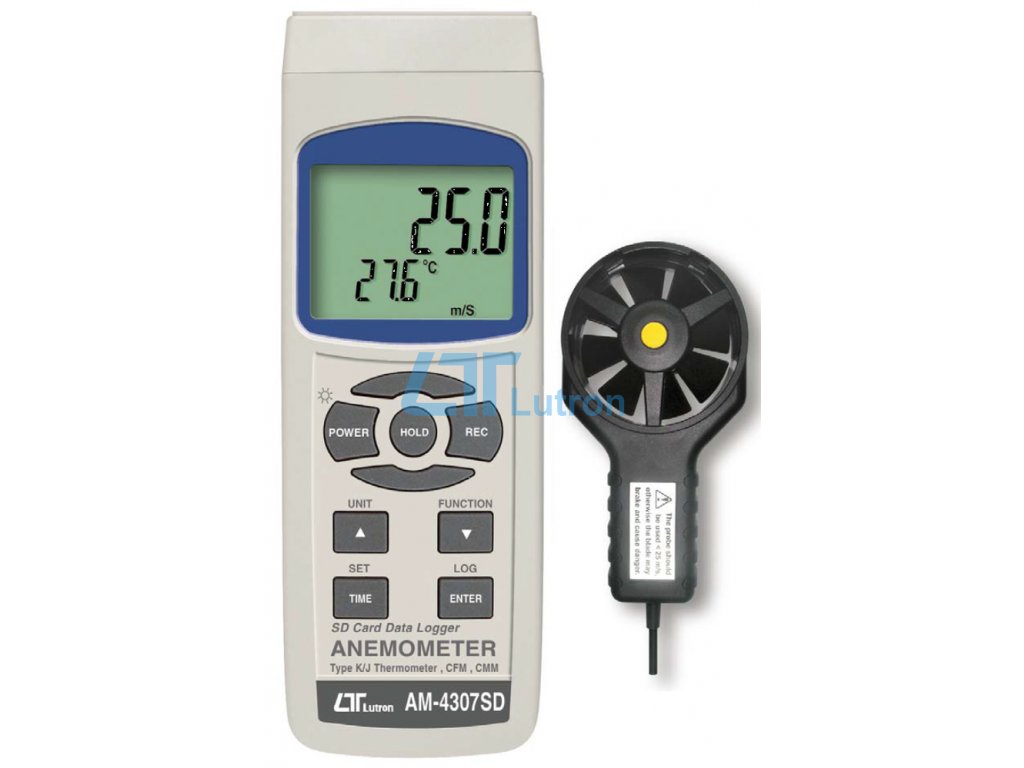

    The LUTRON AM-4307SD is an anemometer with external probe, that can measure gas flow rate in range 0,4 - 30,0 m/s and temperature in range -100 - 1300 °C by K-type thermocouple. This device is capable of storing measurements onto SD card and can communicate via RS232 or USB.

    Features:
    Switchable units: m/s, ft/min, km/h, knot, mph; CMM, CFM, °C, °F
    Air velocity range 0.4 ~ 30 m/s
    Flow rate 0 to 54 cubic meters per minute (CMM, CFM)
    Air temperature measurement  by anemometer probe: 0 ~ 50°C
    Temperature measurement with an external probe: -50 ~ 1300 ℃
    Data Hold function
    Communication interface: RS232, USB
    Dimensions: 203x76x38 mm
    Weight: 515 g (battery included)
    Powered by 6x 1.5V battery or 9V power adapter(not included)

    thermocouple and SD card not included

    Documents:

    Additional parameters

    Category: Mechanical anemometers
    Weight: 1 kg
