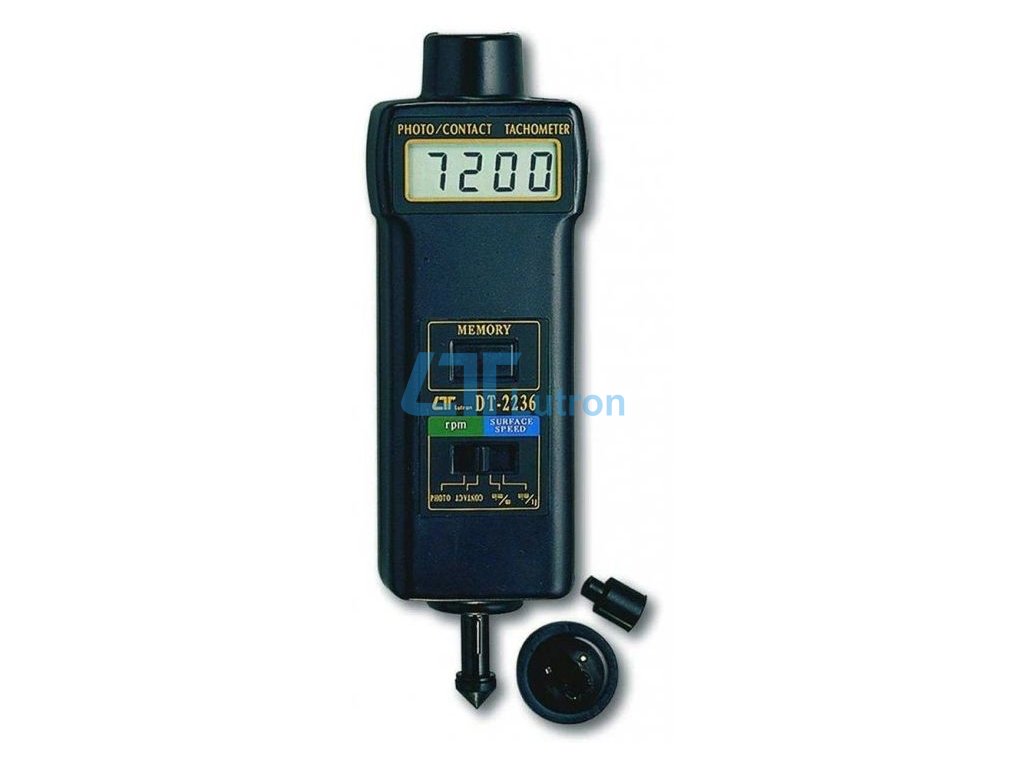

Tachometer LUTRON DT-2236

Product detailed description

Lutron DT-2236 is one instrument combine Photo tachometer and contact tachometer.

Photo Tachometer :
10 to 99,999 RPM, resolutin 0.1 RPM ( < 1,000 RPM ).

Contact Tachometer:
0.5 to 19,999 RPM, resolutin 0.01m/min. ( < 100 m/min. ).
01. RPM resolution for the measured value < 1000 RPM
High precision with 0.05% accuracy ± (0.05% + 1 digit), revolutions only.
The last value, max. value and min. value will be stored into the memory automatically and can be obtained by pressing Memory Call Button
Large LCD display

Power supply: 4x 1.5V AA batteries

Package contents:
Plastic case
Reflective tape (600 mm)
Cone rubber attachment (AS-35A)
Rubber funnel attachment (AS-35B)
Surface speed attachment (AS-35C)

Documents:

• Datasheet
